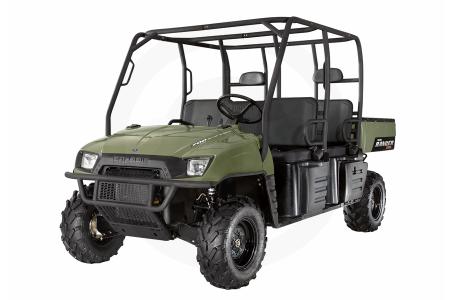

2009 Polaris Industries Ranger Crew®
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

100% RANGER with seating for Six. The only SxS with seating for six. Work, hunt or take the whole gang for a ride in the back country.

  • 700 Twin EFI Engine: EFI for fast starts and consistent performance at high elevations and in extreme temperatures
  • On-Demand True AWD: Senses when the rear wheels slip to engage both front wheels with full torque, maximizing traction with true 4-wheel drive
  • Independent Rear Suspension: IRS has class-leading 9 in. (22.9 cm) of suspension travel for the smoothest ride off-road -- empty or fully loaded
  • Seating For Six: Six-person seating allows for plenty of leg room and 6 seat belts
  • Dual-Piston Caliper Brakes: Dual-Piston caliper front and rear brakes deliver superior braking and control even under heavy loads
  • Lock & Ride cargo System: Exclusive cargo system lets you add or change accessories in less than a minute with no tools
  • Towing Capacity: A 1-ton (2000 lbs./907 kg) towing capacity for towing trailers and heavy equipment
Engine
  • Displacement: 683 cc
  • Horsepower: 40 hp
  • Cooling Type: Liquid
  • Engine Type: 4 Valve 4 Stroke Twin Cylinder
  • Top Speed: 44 mph (71 km/h)
  • Lubrication: Wet Sump
  • Oil Capacity: 2 qt. (1.9 l)
  • Carburetion: Electronic Fuel Injection
  • Fuel Capacity: 9.0 gal. (34 l)
  • Coolant Capacity: 3.3 qt. (3 l)
  • Alternator: 500 Watts
Drivetrain
  • Transmission: Automatic
  • Gear Range: In-Line
  • Drive System: 4 Wheel Shaft Drive
Suspension
  • Front Details: Macpherson Strut
  • Rear Details: Independent Rear Suspension
  • Front Suspension: 8.0 in. (20.32 cm) Dual A-Arm
  • Rear Suspension: 9.0 in. (22.9 cm) Dual A-Arm
  • Front Tires: 26 X 9-12
  • Rear Tires: 26 X 11-12
Dimensions
  • Wheelbase: 108 in. (274 cm)
  • Turning Radius: 224 in. (567 cm) With Power Steering
  • Dry Weight: 1460 lbs. (662 kg)
  • Ground Clearance: 11 in. (28 cm)
  • Length: 145 in. (368 cm)
  • Width: 60 in. (152 cm)
  • Height: 75 in. (190 cm)
  • Brakes: 4 Wheel Hydraulic Disk
  • Parking Brake: Hand Activated
Load Capacity
  • Box Dimension: 54 X 36.5 X 11.5 in. (143 X 101.5 X 31.5 cm)
  • Box Capacity: 1000 lbs. (454 kg)
  • Payload Capacity: 1750 lbs. (794 kg)
  • Hitch Towing Capacity: 2000 lbs. (907 kg)
  • Cargo System: Lock and Ride
  • Seating: 3
  • Skid Plate: Full

Specifications

Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Cooling Liquid-cooled
Fuel System Electronic Fuel Injection
Chassis
Front Suspension MacPherson Strut
Front Brakes 4-wheel hydraulic disk
Front Tire 26 x 9-12
Rear Suspension 9.0 in. (22.9 cm)
Rear Brakes 4-wheel hydraulic disk
Rear Tire 26 x 9-12
Dimensions
Dry Weight 1,460 lbs. (662 kg)
Front Travel 8.0 in.(20.32 cm)
Fuel Capacity 9.0 gal. (34 l)
Rear Travel 9.0 in. (22.9 cm)
Wheelbase 108 in. (274 cm)
Ground Clearance 11 in. (28 cm)
Box Capacity 1,000 lbs. (454 kg)
Towing Capacity 2,000 lbs. (907 kg)
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
General
Colors Green, Red

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Ranger Crew®
Style Side x Side
MSRP* $11,499.00
Chassis
Front Suspension MacPherson Strut
Front Brakes 4-wheel hydraulic disk
Front Tire 26 x 9-12
Rear Suspension 9.0 in. (22.9 cm)
Rear Brakes 4-wheel hydraulic disk
Rear Tire 26 x 9-12
Dimensions
Dry Weight 1,460 lbs. (662 kg)
Front Travel 8.0 in.(20.32 cm)
Fuel Capacity 9.0 gal. (34 l)
Rear Travel 9.0 in. (22.9 cm)
Wheelbase 108 in. (274 cm)
Ground Clearance 11 in. (28 cm)
Box Capacity 1,000 lbs. (454 kg)
Rack Capacity
Towing Capacity 2,000 lbs. (907 kg)
Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Bore and Stroke
Cooling Liquid-cooled
Compression Ratio
Fuel System Electronic Fuel Injection
Ignition
General
Speedometer
Tachometer
Odometer
Colors Green, Red
Warranty
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
