$12,999.00

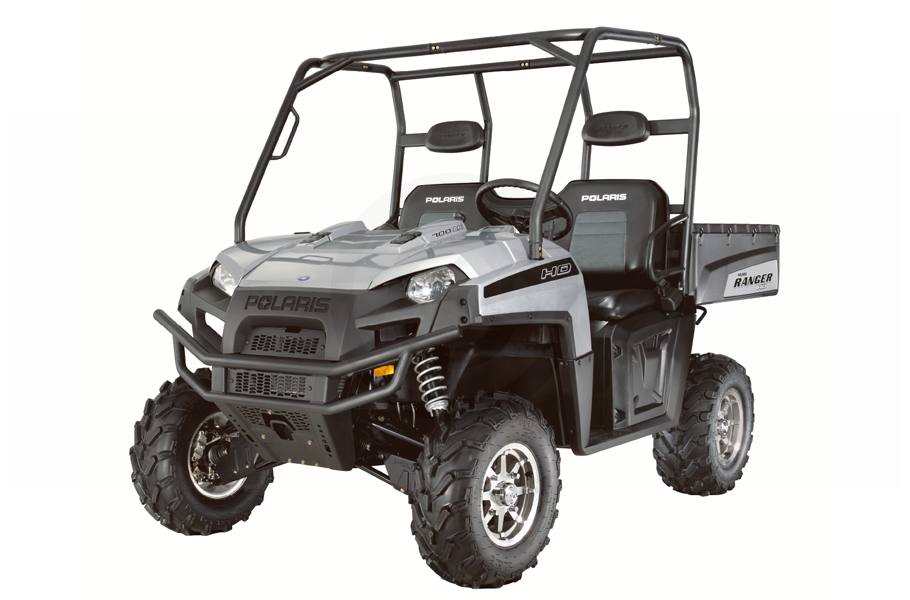

2009 Polaris Industries Ranger® HD
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Heavy-duty Workhorse for the Ultimate in Utility. The all-new RANGER HD is filled with hard-working new technology, including self-leveling shocks, power steering and attachments that grapple up to 500 lbs.

  • 700 Twin EFI Engine: EFI for fast starts, industry-leading 50 mph (80 km/h) top speed to get you out there faster.
  • On-Demand True AWD: Senses when the rear wheels slip to engage both front wheels with full torque, maximizing traction with true 4-wheel drive
  • New Front Suspension: New Dual A-Arm design is fully adjustable so you can fine-tune the suspension for work or play with 50% easier steering
  • New Ergonomics: New cab design adds more leg room, tilt steering, repositioned pedals and an all-new seat with car like comfort.
  • New Storage: New in-dash storage features big glove box and four compartments with 140% more storage, and removable underseat box
  • Front-end Protection: All new: upswept bumper, recessed headlights, fully armored radiator and front differential to maximize protection.
  • Independent Rear Suspension: IRS has class-leading 9 in. (22.9 cm) of suspension travel. HD adds Self-Leveling Nivomat® socks for a smooth ride empty or loaded
  • Power Steering: Variable-assist power steering adjusts for speed making steering easy at slow speeds and adjusts as speed increases
  • Available Lift & Carry™: The hydraulic Lift & Carry system lets you move, plow, or grapple up to 500 lbs. loads
  • Towing Capacity: A 1-ton (2000 lbs./907 kg) towing capacity for towing trailers and heavy equipment
Engine
  • Displacement: 683 cc
  • Horsepower: 40 hp
  • Cooling Type: Liquid
  • Engine Type: 4 Valve 4 Stroke Twin Cylinder
  • Top Speed: 50 mph (80 km/h)
  • Lubrication: Wet Sump
  • Oil Capacity: 2 qt. (1.9 l)
  • Carburetion: Electronic Fuel Injection
  • Fuel Capacity: 9.0 gal. (34 l)
  • Coolant Capacity: 3.25 qt. (3 l)
  • Alternator: 500 Watts
Drivetrain
  • Transmission: Automatic
  • Gear Range: In-Line
  • Drive System: 4 Wheel Shaft Drive
Suspension
  • Front Details: Adjustable Dual A-Arms
  • Rear Details: Self-Leveling Suspension™ With Nivomat Shocks
  • Front Suspension: 9.63 in. (24.5 cm) Dual A-Arm
  • Rear Suspension: 7.5 in. (19 cm) Dual A-Arm
  • Front Tires: 26 X 9-12
  • Rear Tires: 26 X 11-12
Dimensions
  • Wheelbase: 76 in. (193 cm)
  • Turning Radius: 166 in. (422 cm) With Power Steering
  • Dry Weight: 1262 lbs. (572 kg)
  • Ground Clearance: 12 in. (30 cm)
  • Length: 113 in. (287 cm)
  • Width: 60 in. (152 cm)
  • Height: 75 in. (190 cm)
  • Brakes: 4 Wheel Hydraulic Disk
  • Parking Brake: Hand Activated
Load Capacity
  • Box Dimension: 54 X 36.5 X 11.5 in. (143 X 101.5 X 31.5 cm)
  • Box Capacity: 1000 lbs. (454 kg)
  • Payload Capacity: 1500 lbs. (681 kg)
  • Hitch Towing Capacity: 2000 lbs. (907 kg)
  • Cargo System: Lock and Ride
  • Seating: 3
  • Skid Plate: Full

Specifications

Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Cooling Liquid-cooled
Fuel System Electronic Fuel Injection
Chassis
Front Suspension Adjustable Dual A-Arms
Front Brakes 4-wheel hydraulic disk
Front Tire 26 x 9-12
Rear Suspension Self-Leveling Suspension™ with Nivomat® Shocks
Rear Brakes 4-wheel hydraulic disk
Rear Tire 26 x 11-12
Dimensions
Dry Weight 1,262 lbs.(572 kg)
Front Travel 9.63 in. (24.5 cm)
Fuel Capacity 9.0 gal.(34 l)
Rear Travel 7.5 in. (19 cm)
Wheelbase 76 in.(193 cm)
Ground Clearance 12 in.(30 cm)
Box Capacity 1,000 lbs. (454 kg)
Towing Capacity 2,000 lbs.(907 kg)
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
General
Colors Silver

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Ranger® HD
Style Side x Side
MSRP* $12,999.00
Chassis
Front Suspension Adjustable Dual A-Arms
Front Brakes 4-wheel hydraulic disk
Front Tire 26 x 9-12
Rear Suspension Self-Leveling Suspension™ with Nivomat® Shocks
Rear Brakes 4-wheel hydraulic disk
Rear Tire 26 x 11-12
Dimensions
Dry Weight 1,262 lbs.(572 kg)
Front Travel 9.63 in. (24.5 cm)
Fuel Capacity 9.0 gal.(34 l)
Rear Travel 7.5 in. (19 cm)
Wheelbase 76 in.(193 cm)
Ground Clearance 12 in.(30 cm)
Box Capacity 1,000 lbs. (454 kg)
Rack Capacity
Towing Capacity 2,000 lbs.(907 kg)
Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Bore and Stroke
Cooling Liquid-cooled
Compression Ratio
Fuel System Electronic Fuel Injection
Ignition
General
Speedometer
Tachometer
Odometer
Colors Silver
Warranty
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
