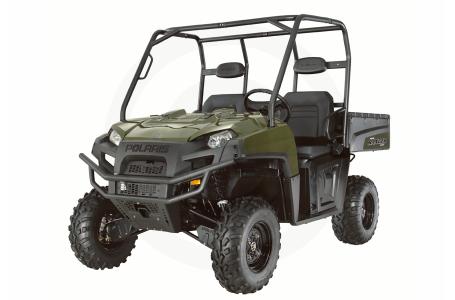

2009 Polaris Industries Ranger XP®
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 700 Twin EFI Engine: EFI for fast starts, industry-leading 50 mph (80 km/h) top speed to get you to the job site or deer camp faster.
  • On-Demand True AWD: Senses when the rear wheels slip to engage both front wheels with full torque, maximizing traction with true 4-wheel drive
  • New Front Suspension: New Dual A-Arm design is fully adjustable so you can fine-tune the suspension for work or play with 50% easier steering
  • New Ergonomics: New cab design adds more leg room, tilt steering, repositioned pedals and an all-new seat with car like comfort.
  • New Storage: New in-dash storage features big glove box and four compartments with 140% more storage, 46% more than the competition
  • Front-end Protection: All new: upswept bumper, recessed headlights, fully armored radiator and front differential to maximize protection.
  • Independent Rear Suspension: IRS has class-leading 9 in. (22.9 cm) of suspension travel for the smoothest ride off-road -- empty or fully loaded
  • Lock & Ride cargo System: Exclusive cargo system lets you add or change accessories in less than a minute with no tools
  • Towing Capacity: A 1-ton (2000 lbs./907 kg) towing capacity for towing trailers and heavy equipment
  • Multi-Functional Speedometer: Instrumentation includes analog speedometer, digital fuel gauge, odometer, tachometer, clock and indicators for gear selection and AWD
Engine
  • Displacement: 683 cc
  • Horsepower: 40 hp
  • Cooling Type: Liquid
  • Engine Type: 4 Valve 4 Stroke Twin Cylinder
  • Top Speed: 50 mph (80 km/h)
  • Lubrication: Wet Sump
  • Oil Capacity: 2 qt. (1.9 l)
  • Carburetion: Electronic Fuel Injection
  • Fuel Capacity: 9.0 gal. (34 l)
  • Coolant Capacity: 3.25 qt. (3 l)
  • Alternator: 500 Watts
Drivetrain
  • Transmission: Automatic
  • Gear Range: In-Line
  • Drive System: 4 Wheel Shaft Drive
Suspension
  • Front Details: Adjustable Dual A-Arms
  • Rear Details: Independent Real Suspension
  • Front Suspension: 9.63 in. (24.5 cm) Dual A-Arm
  • Rear Suspension: 9.0 in. (22.9 cm) Dual A-Arm
  • Front Tires: 25 X 10-12
  • Rear Tires: 25 X 11-12
Dimensions
  • Wheelbase: 76 in. (193 cm)
  • Turning Radius: 158 in. (401 cm)
  • Dry Weight: 1237 lbs. (561 kg)
  • Ground Clearance: 12 in. (30 cm)
  • Length: 113 in. (287 cm)
  • Width: 60 in. (152 cm)
  • Height: 75 in. (190 cm)
  • Brakes: 4 Wheel Hydraulic Disk
  • Parking Brake: Hand Activated
Load Capacity
  • Box Dimension: 54 X 36.5 X 11.5 in. (143 X 101.5 X 31.5 cm)
  • Box Capacity: 1000 lbs. (454 kg)
  • Payload Capacity: 1500 lbs. (681 kg)
  • Hitch Towing Capacity: 2000 lbs. (907 kg)
  • Cargo System: Lock and Ride
  • Seating: 3
  • Skid Plate: Full

Specifications

Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Cooling Liquid-cooled
Fuel System Electronic Fuel Injection
Chassis
Front Suspension Adjustable Dual A-Arms
Front Brakes 4-wheel hydraulic disk
Front Tire 25 x 10-12
Rear Suspension Independent Rear Suspension
Rear Brakes 4-wheel hydraulic disk
Rear Tire 25 x 11-12
Dimensions
Dry Weight 1,237 lbs.(561 kg)
Front Travel 9.63 in. (24.5 cm) Dual A-Arm
Fuel Capacity 9.0 gal.(34 l)
Rear Travel 9.0 in. (22.9 cm) Dual A-Arm
Wheelbase 76 in.(193 cm)
Ground Clearance 12 in.(30 cm)
Box Capacity 1,000 lbs. (454 kg)
Towing Capacity 2,000 lbs.(907 kg)
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
General
Colors Red, Green

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Ranger XP®
Style Side x Side
MSRP* $10,799.00
Chassis
Front Suspension Adjustable Dual A-Arms
Front Brakes 4-wheel hydraulic disk
Front Tire 25 x 10-12
Rear Suspension Independent Rear Suspension
Rear Brakes 4-wheel hydraulic disk
Rear Tire 25 x 11-12
Dimensions
Dry Weight 1,237 lbs.(561 kg)
Front Travel 9.63 in. (24.5 cm) Dual A-Arm
Fuel Capacity 9.0 gal.(34 l)
Rear Travel 9.0 in. (22.9 cm) Dual A-Arm
Wheelbase 76 in.(193 cm)
Ground Clearance 12 in.(30 cm)
Box Capacity 1,000 lbs. (454 kg)
Rack Capacity
Towing Capacity 2,000 lbs.(907 kg)
Engine
Engine Type 4-valve, 4-stroke twin cyl.
Displacement 683cc
Bore and Stroke
Cooling Liquid-cooled
Compression Ratio
Fuel System Electronic Fuel Injection
Ignition
General
Speedometer
Tachometer
Odometer
Colors Red, Green
Warranty
Transmission
Transmission Automatic
Drive System 4-wheel shaft drive
